PoolTone™ upgrade for Pentair® SAM® Light Color LED Upgrade Kit 16 Colors Shows Large pool size

This kit allows you to upgrade your existing Pentair® Amerlite® SAM® Color Wheel light to color LED
No need to drain your pool or spa and no need to buy an entire new lighting system
** Please Note ** - Due to the dimensions of the fixture this kit is not a bulb but rather an install kit and does require some ability to follow instructions as it is not as easy as screwing in a light bulb.  Please call us before ordering this if you have questions.  We have included instructional videos in addition to the installation guide below.
Using state of the art LED technology this kit will allow you to breath new life and a greater appreciation for the investments you have already made at a fraction of the cost of installing new color LED fixtures
This kit consists of the following:

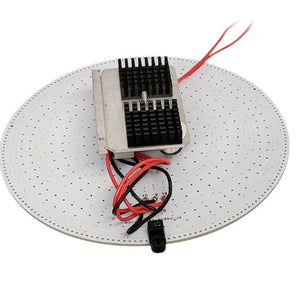

1 - 16 Color LED board
1 - Controller module
2 - T-Tap Terminals
1 - Mounting screw
1 - New Lens Gasket

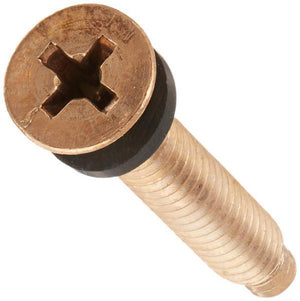

1 - Brass Pilot screw with gum washer
Fits all standard SAM fixtures
Brand New Direct Replacement Underwater Pool Light upgrade kit is 35 Watts
We use Pool Tone® Color LED's which are 300% brighter than OEM

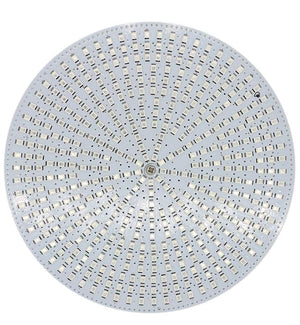

Our 35 Watt version has 488 individual smd RGB led's on the board
7 Solid colors - 9 Color shows
Neutral White, Red, Light Blue, Dark Blue, Green, Cyan and Purple
The color shows include: Smooth Color Transition
Single Color Fade, Medium Color Changing, and Fast Color Changing
Lights are controlled by light switch, no separate controllers needed
To advance lights you simply turn off/on within 8 seconds to advance to next color option
Lights have a memory function so when turned off longer than 8 seconds they will remember the last setting when turned back on
Free Shipping within the US via UPS, FedEx Ground or USPS depending on your location
Bulbs are covered by a 1 year warranty, click on link below for full warranty details
Dimension of light are 10 inches in diameter.


Optional videos below represent an almost identical kit we sell for a different model light but is very similar and for informational purposes:
