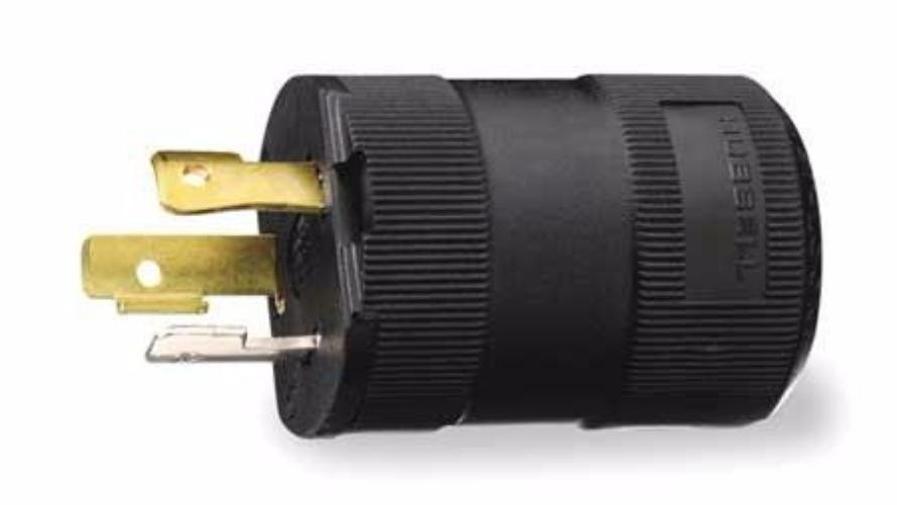

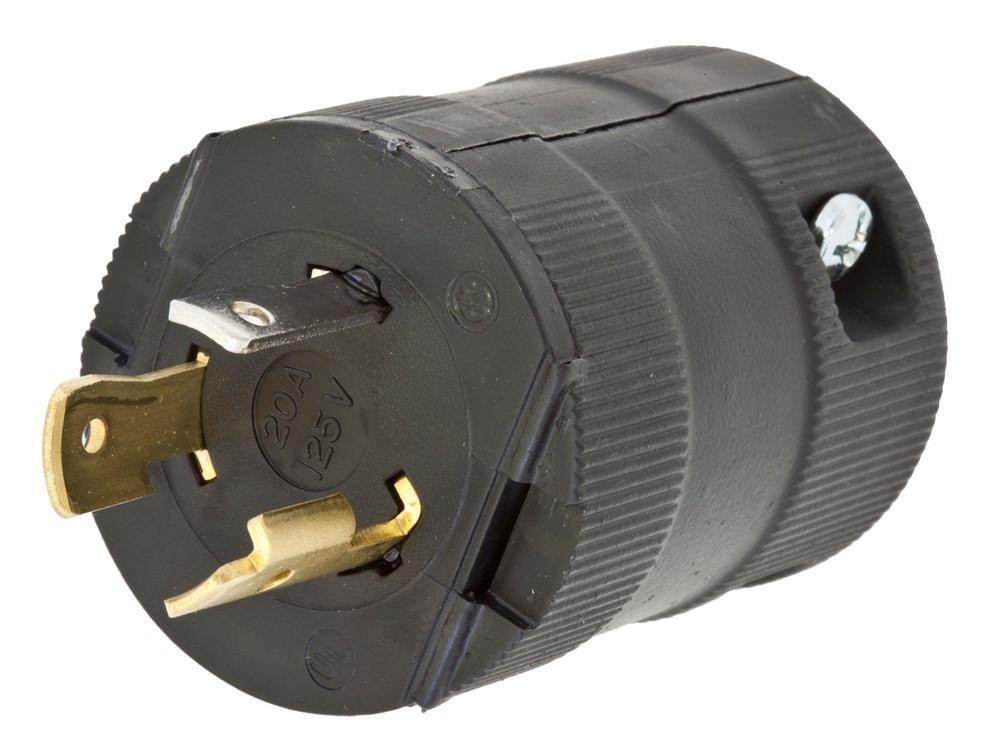

Hubbell HBL2311VBK Plug 125VAC 20A 3 Blade Black

Product Specs

Number of Blades: 3
NEMA Configuration: L5-20
Voltage: 125V AC
Current: 20 A
Color: Black
Wiring Style: Hinged
Grounding: Yes
Antimicrobial: No
Cable Diameter Range: 0.33 - 0.72 in
Cable Grip Size: Not Rated
Connection Orientation: Straight
Contact Type: Pin
Flammability Rating: Not Rated
For Maximum Cable OD: 0.72 in
For Minimum Cable OD: 0.33 in
Grade: Industrial
Horsepower: 1.0 hp
IP Rating: IP20
Material: Nylon
Number of Poles: 2
Phase: Single
RoHS Compliant: Not Rated
Series: Valise
Shape: Circular
Specifications Met: UL; CSA
Type: Locking Plug
Compliance and Restrictions

Country Of Origin

Twist the plug into a matching connector or receptacle to make an electrical connection that stays put. The curved-blade design of these NEMA plugs locks into place with a twisting motion after insertion to prevent loosening and accidental disconnect.

Ideal for general purpose use, these plugs have a plastic housing that provides durability for basic commercial and industrial applications.

Brand Name Hubbell Wiring Device-Kellems
Number of Items 1
Part Number HBL2311VBK
UNSPSC Code 32000000
